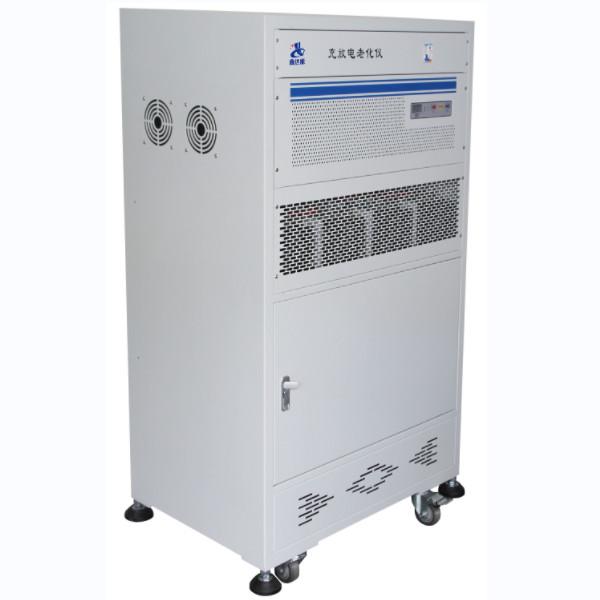

Battery Capacity Tester with P P- and P P-C- Charging and Discharge Tester Single point channel
1. Scope Of Application
The battery capacity tester is applied in electric tools, solar energy storage, torsion car ,scooter, electric bicycle and other lithium battery pack cycle charging , discharge, battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system. The battery pack can be tested by aging cabinet and battery cycler machine.
2. Function Introduction
1) Charge and discharge function with constant current and constant voltage charging function , constant current discharge function, to the charge and discharge of the battery, record the battery capacity.
2) Charge and discharge interface:fully meet the requirements of battery pack charge and discharge outlet and charge and discharge outlet, namely 2 lines (P + P -) , 3 lines (P + P - C - ) and positive plate charging protection , negative plate discharge protection electric tool battery ( CH + P + P - )
3) Record the charging capacity and discharge capacity, charge and discharge the battery , and record the charging capacity and discharge capacity of the battery
3. Equipment Parameter Description
| Product model |
BCDS100-20-40 |
| Voltage |
measuring range |
10 ~ 100V |
| |
precision |
± ( 0.2% of reading + 0.2% of range) |
| Current |
Charging range |
200~ 20000mA |
| |
Discharge range |
200 ~ 40000mA |
| |
precision |
±(0.2% of reading + 0.2% of range ) |
| Battery charging |
Constant pressure cut - off current |
Minimum 50 mA |
| Volume |
precision |
±1‰ |
| Power |
Discharge power |
≤ 4000W |
| Time |
Inspection time |
Receive real - time < 2S |
| |
Timed range |
0~999 Hours / Step |
| Data recording interval |
≥5S |
| Medium machine version |
1.1 Series |
| Battery Charging |
Charging mode |
Constant current constant pressure charging |
| |
cut - off condition |
Voltage , current , relative time , overcharge protection |
| Discharge |
Discharge mode |
constant - current discharge |
| |
cut - off condition |
Voltage , relative time , and overdischarge protection |
| Circulate |
Cycle measurement range |
1 ~ 999 Times |
| |
Number of single cycle steps |
100 |
4. FAQ
1) How To Install And Operate The Machine By Yourself ?
When you get the machine , just power it on and the machine will work . Because this machine is installed with English software .
You just learn how to use the software , and the complete English user manual will be available to you along with the machine.
2) How many days does it take to purchase the equipment for delivery?
We will arrange the delivery items as soon as you pay for the equipment , predict 10-15work day send to.
3) What can you buy from us?
PBTS Series Protection Board Tester,BTS series comprehensive tester,BCDS series charging and discharging aging cabinet,BDS series.
4).How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
5).How long is your delivery time?
1).lf the goods are in stock, it is 5-10 days.
2).If customized services, It usually takes 30-60 days depending on the specifications of the custom instrument.
